- Size: 0.1
- Place of Origin: jiaxing
- Brand Name: precisetool
- Model Number: YJQ-W7A
- Weight: 0.700 kg
GENERAL INFORMATION
1. YJQ-W7A is compatible with the M22520/7-01 which is widely used for the crimping of wires and contacts in electronic connectors.
2. Wire crimp range: 16AWG (1.32mm^2) to 28AWG (0.08mm^2).
Model:YJQ-W7A
Standard:
Connector Standard:M22520/7-01
Contact Model:Turned Solid

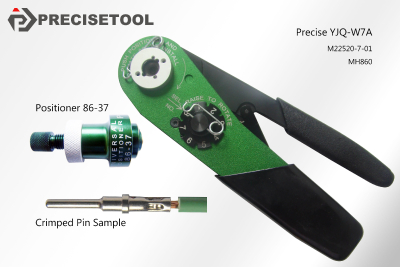

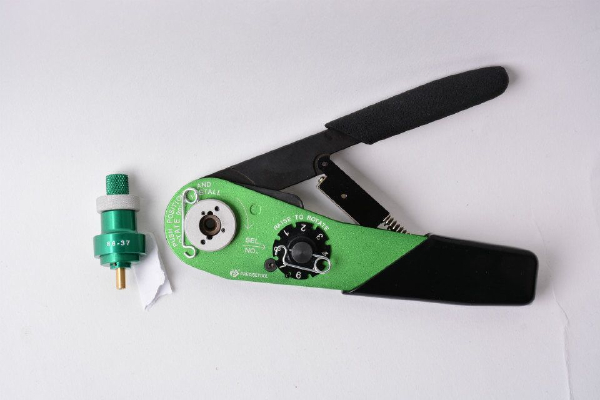

YJQ-W7A Adjustable automotive tool M22520/7-01 multifunctional plier 16-28AWG electronic connectors A82
1. Crimping Method
The crimping tool adopts curve propulsion mechanism, its applied force transfers through four curves in the head cavity of the right plier handle to the four indenters. The four intenders do the centripetal linear motion, which makes its front-end teeth crimp the contact to complete the crimping process. The cycle controlled precision ratchet assures the consistency of impression and the crimping quality of wires
2. Crimping Range Adjustment
The crimping tool has eight selector numbers, the accurate data are listed as follows:
Selector NO. | Intender Working Diameter mm/INCH | |
A GO | B NO GO | |
1 | 0.41/0.016 | 0.53/0.021 |
2 | 0.48/0.019 | 0.61/0.024 |
3 | 0.56/0.022 | 0.69/0.027 |
4 | 0.64/0.025 | 0.76/0.030 |
5 | 0.74/0.029 | 0.86/0.034 |
6 | 0.84/0.033 | 0.96/0.038 |
7 | 0.94/0.037 | 1.07/0.042 |
8 | 1.04/0.041 | 1.17/0.046 |
3. Gaging Instructions
“GO” Gaging: keep the tool in fully closed position, insert the green “GO” gage end into the indenter, it should be easy to enter, otherwise, the selector gear is incorrect
(CAUTION! DO NOT CRIMP GAGE!)
“NO GO” Gaging: keep the tool in fully closed position, insert the red “NO GO” end into the indenter, it can’t pass through completely, otherwise, the selector gear is incorrect.
(CAUTION! DO NOT CRIMP GAGE!)
CRIMPING INSTRUCTIONS
1. Insert the contact and prepare the wire through the indenter from the opposite side.
2. Squeeze the handles together until ratchet releases. Then the handle will return to its open position automatically.
