YJQ-W2Q Pneumatic crimping tool m22520/1-01 for 12-26AWG Wire

YJQ-W2Q Pneumatic crimping tool m22520/1-01 for 12-26AWG Wire

  • Min.Order Quantity: 1 Set
  • Supply Ability: 1000 Sets per Month
  • Port: jiaxing harbour
  • Payment Terms: T/T
Get Latest Price:
  • *Quantity: Set/Sets
Verified Supplier Precisetool
| Factory
Experience:2009-09-16
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  0.2
  • Place of Origin:  jiaxing
  • Brand Name:  precisetool
  • Model Number:  YJQ-W2Q
  • Weight: 2.000 kg

GENERAL INFORMATION

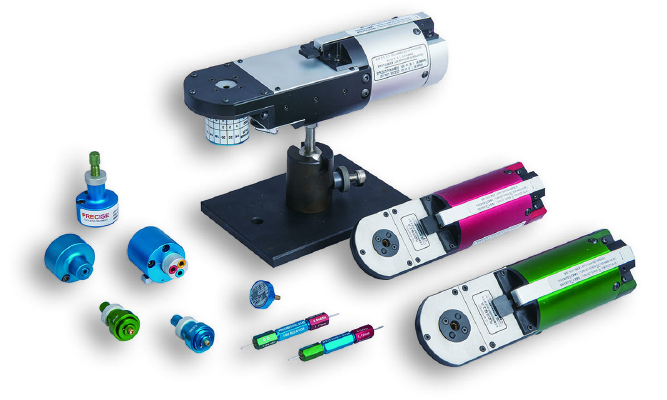

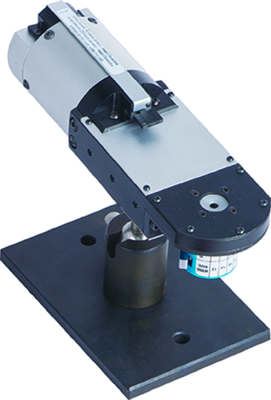

1. YJQ-W2Q is a pneumatic crimp tool which is compatible with the M22520/1-01, it is widely used for the crimping of wires and contacts in both military and proprietary programs.

2. Wire crimp range: 12AWG (3.33mm^2) to 26AWG (0.128mm^2).

WORKING PRINCIPLES

1. Crimping Method

    The crimping tool adopts curve propulsion mechanism, its applied force transfers through four curves in the head cavity of the right plier handle to the four indenters. The four intenders do the centripetal linear motion, which makes its front-end teeth crimp the contact to complete the crimping process. The cycle controlled precision ratchet assures the consistency of impression and the crimping quality of wires and contacts.

2. Crimping Range Adjustment

    The crimping tool has eight selector numbers; the accurate data are listed as follows:

Selector NO.

Intender Working Diameter mm/INCH

A GO

B NO GO

1

0.71/0.028

0.84/0.033

2

0.81/0.032

0.94/0.037

3

0.91/0.036

1.04/0.041

4

0.99/0.039

1.12/0.044

5

1.14/0.045

1.27/0.050

6

1.32/0.052

1.45/0.057

7

1.50/0.059

1.63/0.064

8

1.73/0.068

1.86/0.073
