GENERAL INFORMATION

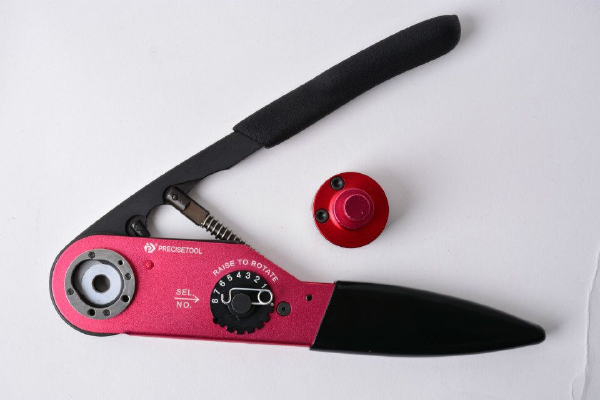

1. YJQ-M309 is a hand crimp tool which is widely used for the crimping of wires and contacts in both military and proprietary programs.
2. Wire crimp range: 8AWG (8.37mm^2) to 18AWG (0.8mm^2).
WORKING PRINCIPLES
1. Crimping Method
The crimping tool adopts curve propulsion mechanism, its applied force transfers through four curves in the head cavity of the right plier handle to the four indenters. The four intenders do the centripetal linear motion, which makes its front-end teeth crimp the contact to complete the crimping process. The cycle controlled precision ratchet assures the consistency of impression and the crimping quality of wires and contacts.
2. Crimping Range Adjustment
The crimping tool has eight selector numbers; the accurate data are listed as follows:
Selector Intender Working Diameter mm/INCH
NO. A (GO) B (NO GO)
1 0.036/0.91 0.041/1.04
2 0.045/1.14 0.05/1.27
3 0.052/1.32 0.057/1.45
4 0.061/1.55 0.066/1.68
5 0.069/1.75 0.074/1.88
6 0.076/1.93 0.081/2.06
7 0.086/2.18 0.095/2.41
8 0.1/2.54 0.11/2.79
