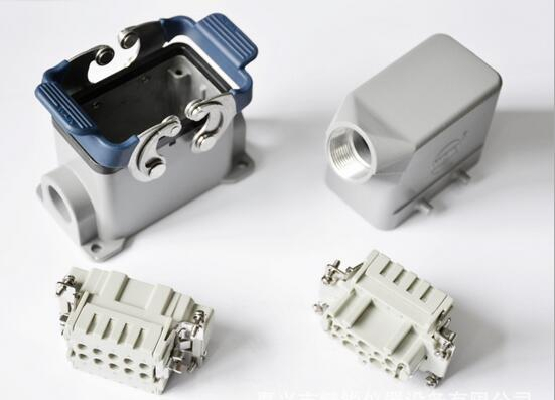

Brand kind WAIN Model HE-010 plug / socket

10P Number of poles 16 Rated current voltage 500 (V)

Gray color custom processing No Cable Applications

Material contacts Copper alloy core number, pin number 10 10

Type Model No. Description Quantity Unit Price Amount HaRTInG

1 16A male core HE-010-MC 09330102602 1 ¥ 48.00 48

2 16A female core HE-010-FC 09330102702 1 ¥ 54.40 54.4

3 16A male pin CESM-1.0 09330006105 10 ¥ 2.50 25

4 16A female contacts CESF-1.0 09330006205 10 ¥ 2.50 25

5 on the housing side of the outlet H10B-SE-4B-M25 19300101521 1 ¥ 71.40 71.4

6 lower case, back cover H10B-SF-2L / SC-M25 19300101231 1 ¥ 97.00 97

Subtotal 320.8

7 crimping tool W2Q / W2A 6-speed

8 to take delivery tool TL01
